SIKO SGH50 for cylinders with up to 5000mm displacement
 | Order Code: | SGH50 |
 |
E-mail this page |
 |
Print this page |  | Download PDF file | | | | | Packaging: | 1 | | Min. Order: | 1 | | Supplier: | SIKO GMBH |  |
You are not logged in. Please Login or register to view prices and order online. Description: The SGH series technology neatly transforms standard and telescopic hydraulic cylinders, as well as piston accumulators, into smart and controllable hydraulic systems. An SGH series sensor is suitable for all applications. With measuring lengths of up to 5,000 mm, a wide selection of interfaces and mechanical flexibility, our SGH family can both mechanically and electrically integrate into the widest range of applications.
Redundant options and sensors for performance levels of up to PLd are available for safety critical applications.
The SGH50 wire-actuated sensor provides absolute position measurement and speed measurement in standard hydraulic cylinders, telescopic hydraulic cylinders, and piston accumulators. Durable, reliable, and easy to integrate, based on over 30 years of experience in wire-actuated sensor technology.
Profile SGH25: - Measuring range 0 … 5000 mm (196.85 inches)
- Absolute measuring system
- Pressure-resistant up to 350 bar, pressure peaks up to 450 bar
- High degree of flexibility, adjustable to all measuring lengths thanks to teach-in
- Redundant interfaces (CAT3) available
- Safety version usable up to EU Performance Level d
- Analogue, CANopen, SAE J1939, CANopen Safety interfaces

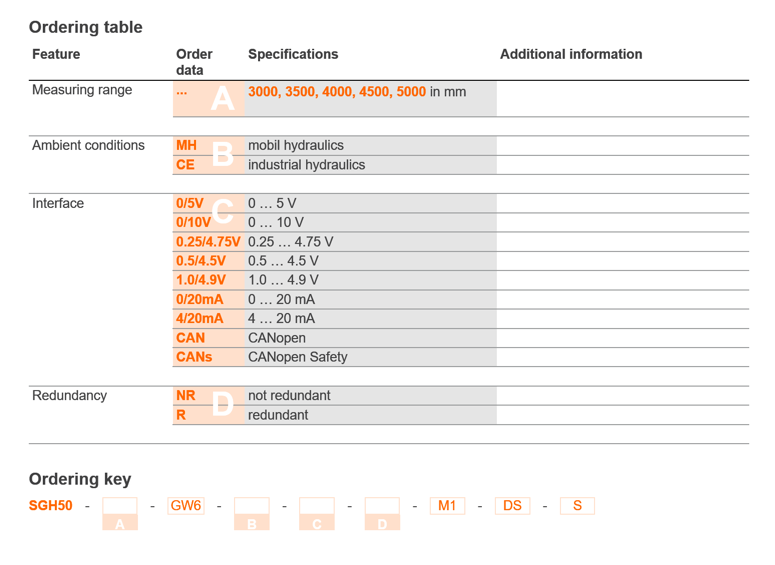

 | SIKO SGH50 Order Codes |
|
