SIKO SGH10 for cylinders with up to 1000mm displacement

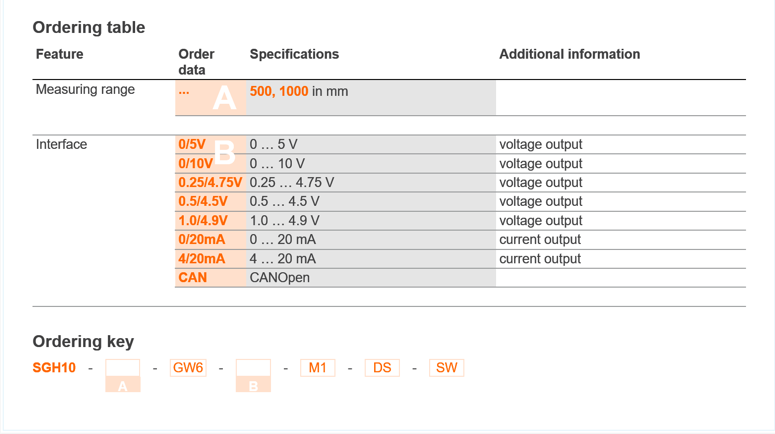

 | Order Code: | SGH10 |
 |
E-mail this page |
 |
Print this page |  | Download PDF file | | | | | Packaging: | 1 | | Min. Order: | 1 | | Supplier: | SIKO GMBH |  |
You are not logged in. Please Login or register to view prices and order online. Description: The SGH series technology neatly transforms standard and telescopic hydraulic cylinders, as well as piston accumulators, into smart and controllable hydraulic systems. An SGH series sensor is suitable for all applications. With measuring lengths of up to 5,000 mm, a wide selection of interfaces and mechanical flexibility, our SGH family can both mechanically and electrically integrate into the widest range of applications.
Redundant options and sensors for performance levels of up to PLd are available for safety critical applications.
The SGH10 series wire-actuated encoder measures the absolute, direct cylinder stroke of a hydraulic cylinder.
Installation is simple and easy to manage. (Cost-intensive drilling of the piston is not required.)
As a result there are lower integration costs compared with other measurement systems and weakening of the piston is effectively avoided.
The highlight:The measurement system can even be used in telescopic cylinders!
In the framework of SPS IPC Drives 2015, exhibition and online visitors nominated the SGH10 as the winner of the DirectIndustry i-NOVO Award in the TECH category.
Profile SGH10: - Measuring range 0 … 1000 mm (39.37 inches)
- Absolute measuring system
- Digital: CANopen interface
- Analogue: Current and voltage
- Operating voltage 9 ... 32 VDC
- Pressure-resistant up to 350 bar, pressure peaks up to 450 bar
- High degree of flexibility, adjustable to all measuring lengths thanks to teach-in
- High electro-magnetic compatibility
- High shock and vibration resistance
- With PURE.MOBILE technology
|
